This high-precision lithium ion meter is a nanotechnology-based instrument designed to provide reliable data by combining a lithium-selective electrode with a pH electrode.
The Imacimus 2: pH & ISE is a multiparameter instrument that enables simultaneous analysis of Li+ ions and pH in aqueous solutions, delivering results in just one minute per sample.
Ideal for applications requiring accurate lithium ion and pH measurements, this advanced meter ensures precise, real-time data for comprehensive chemical analysis.
The lithium ion and pH analyzer is supplied with powerful analysis software that displays measurements (and allows identification) and can be customized for calibration with up to 5 personalized standard points, among other features. Continuous monitoring is also available for the study of short-term reactions or processes.
The lithium ion sensor is a replacement module and can be swapped out for a new lithium sensor or any other sensor available in our catalog.
Please note the limited lifespan of ISE sensors, even when stored on a shelf or installed in a probe. The lifespan of different sensors can vary by several months under the same conditions.
SKU: PRO1073-LI
GTIN: 8436610061896
Dual Channel ION/mV/pH for use with PC/Laptop.
Software for Windows
USB cable for data/power
Single ION PROBE.
Mini Lithium Electrode
Reference electrode/pH
Calibration Standard 10 mg/L Lithium (100 mL)
Calibration Standard 100 mg/L Lithium (100 mL)

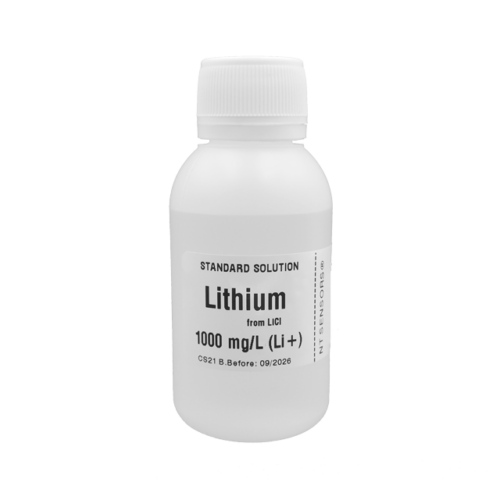

Calibration Standard 1000 mg/L Lithium (100 mL)
pH buffers 4/7 (2x50ml)
Deionized water (50 mL)
User manual
Your lithium ion and pH tool kit comes with all the elements needed to start reading samples.
Employing the same operating principle as standard laboratory electrodes
The potentiometry technique (ISE) is relatively inexpensive and easy to operate.
Ion selective electrodes have a wide concentration measurement range.
Specifications
Data
ISE range
0.1 to 5,000 mg/L
ISE/pH resolution
0 to 14 pH is 0.01 pH
0 to 1.0 ppm is 0.1 ppm
1 to 9,999 ppm is 1 ppm
ISE accuracy
±4 % or 8 % * In the absence of interfering ions, the accuracy may be better than ±1 mV, i.e. corresponding to ±4 % of the measurement.
(For divalent ions, ±2 mV; ± 8 %)
Repeatability ISE
±10% monovalent ±20% divalent ** Repeatability in the measurement of a standard solution after calibration.
ISE/pH calibration
From 2 to 5 points.
Fully customizable calibration standards.
