Nitrite ion selective electrode (ISE)

Measure ISE nitrite ion in aqueous solutions. NT Sensors manufactures and puts at your disposal high quality, reliable, fast and affordable nitrite ion selective electrodes based on the latest nanotechnology innovative research. It’s useful to analyze samples both on the field and in a laboratory.

This ion is poisonous for fish and harmful for humans. It can produce circulatory disturbances or a drop in the oxygen supply, so it’s classified as carcinogenic. Due to this, monitoring this parameter with a nitrite sensor is obviously paramount for both healthy and ecological reasons.

...

SPECIFICATIONS

Range (concentration):  0,5 to 1000 mg/L  / 1×10-5 to 0,02 (mol/L)
Reproducibility (precision): ±10% of full scale (calibrated 10 to 1000 mg/L)
Interfering ions: SCN -, I -, ClO4 -, Br -, NO3 –
pH range: 4,5 to 6 (no pH compensation)
Temperature range: 5 – 30°C (no temperature compensation)
Electrode slope: 54 ±5 mV
Electrode resistance: 1–4 MΩ
Immersion minimum: 2 mm (without the protective cap)
Body diameter: see different sensors

1
2
3
Nitrite single ion
1

Mini ION Nitrite

ISE Nitrite

2

Single Probe

3

BNC or USB

ISE Nitrite meter + pH

The imacimus kit analysis system allows the direct measurement of the exact concentration of nitrite, thus giving rise to rapid analysis and greater reliability.

1
2
3
4
5
1

Single probe Nitrite

Nitrite single ion

2

Single ION pH

pH single ion

3

Nitrite meter

pH Nitrite meter

4

USB cable

USB Cable

5

NT Sensors software

software imacimus

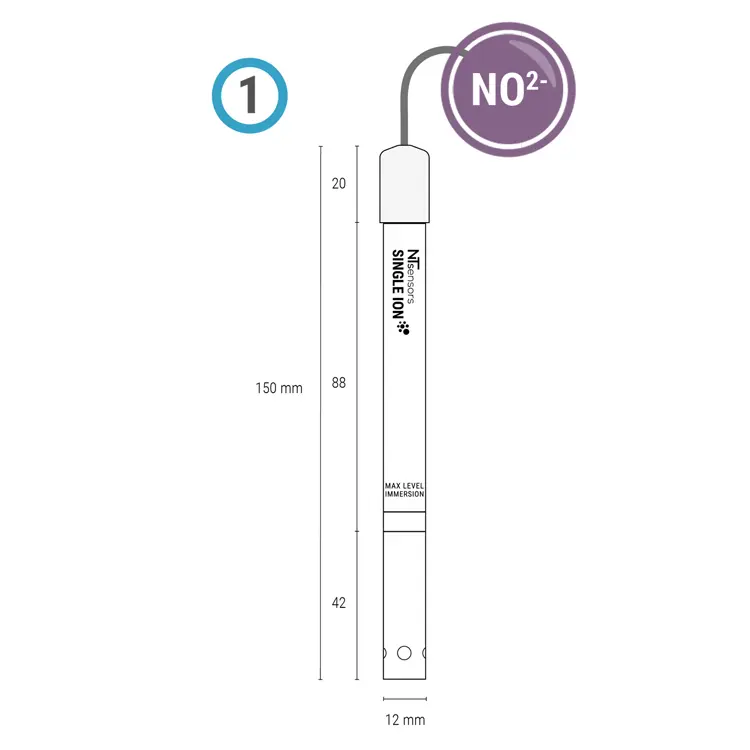

Single Ion: Nitrite electrode

The most classic look-like ion selective electrode, with innovative replaceable tip and probe holder for several tip sensors. Discover this electrode, one body, multiple sensor tips.

Nitrite ion-selective electrode probe

REF: S046
Diameter: 2,5 mm

Conector type:
– BNC (standard)
– USB (imacimus meter)

Minimum sample volume: 5 ml
PDF information about Single Ion
